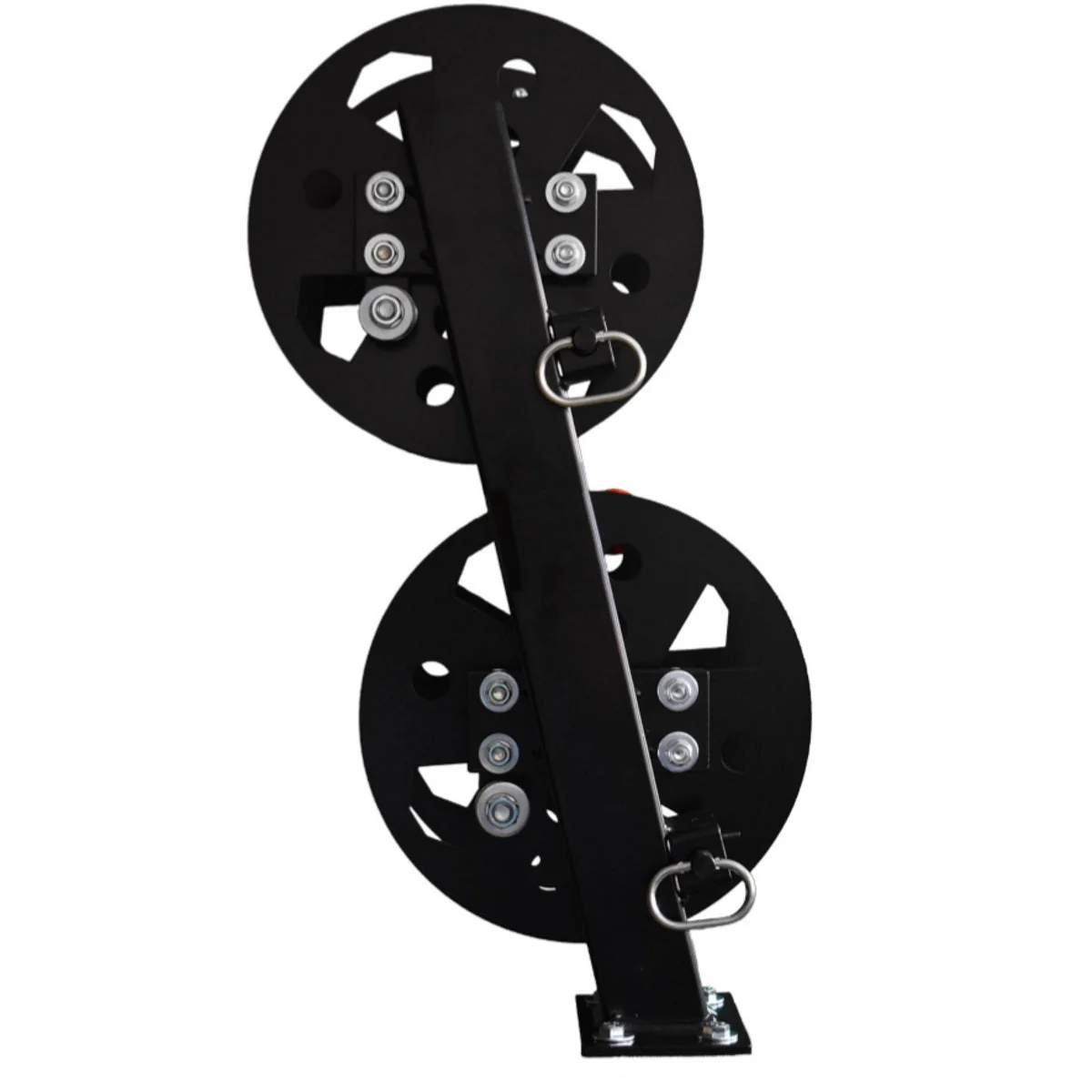

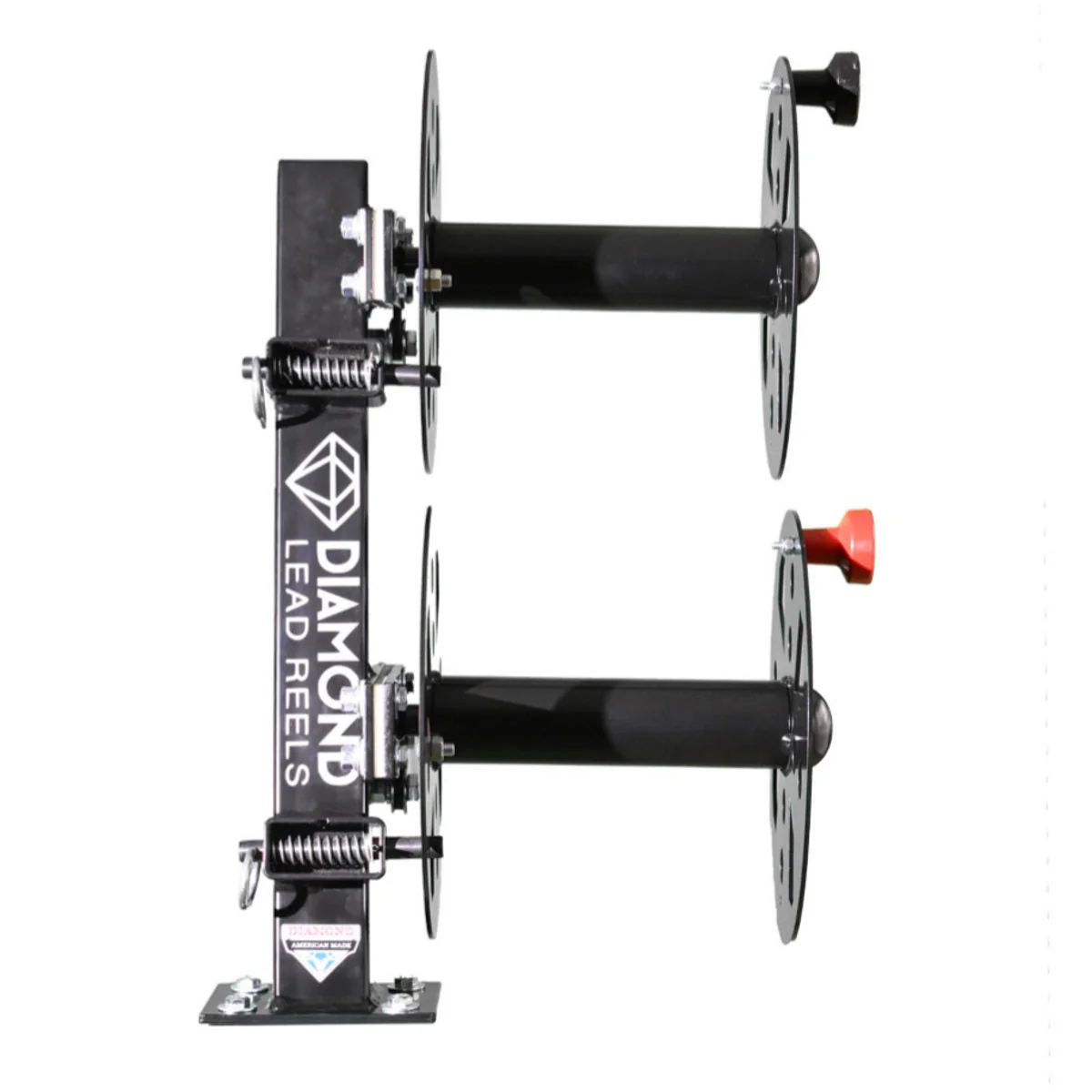

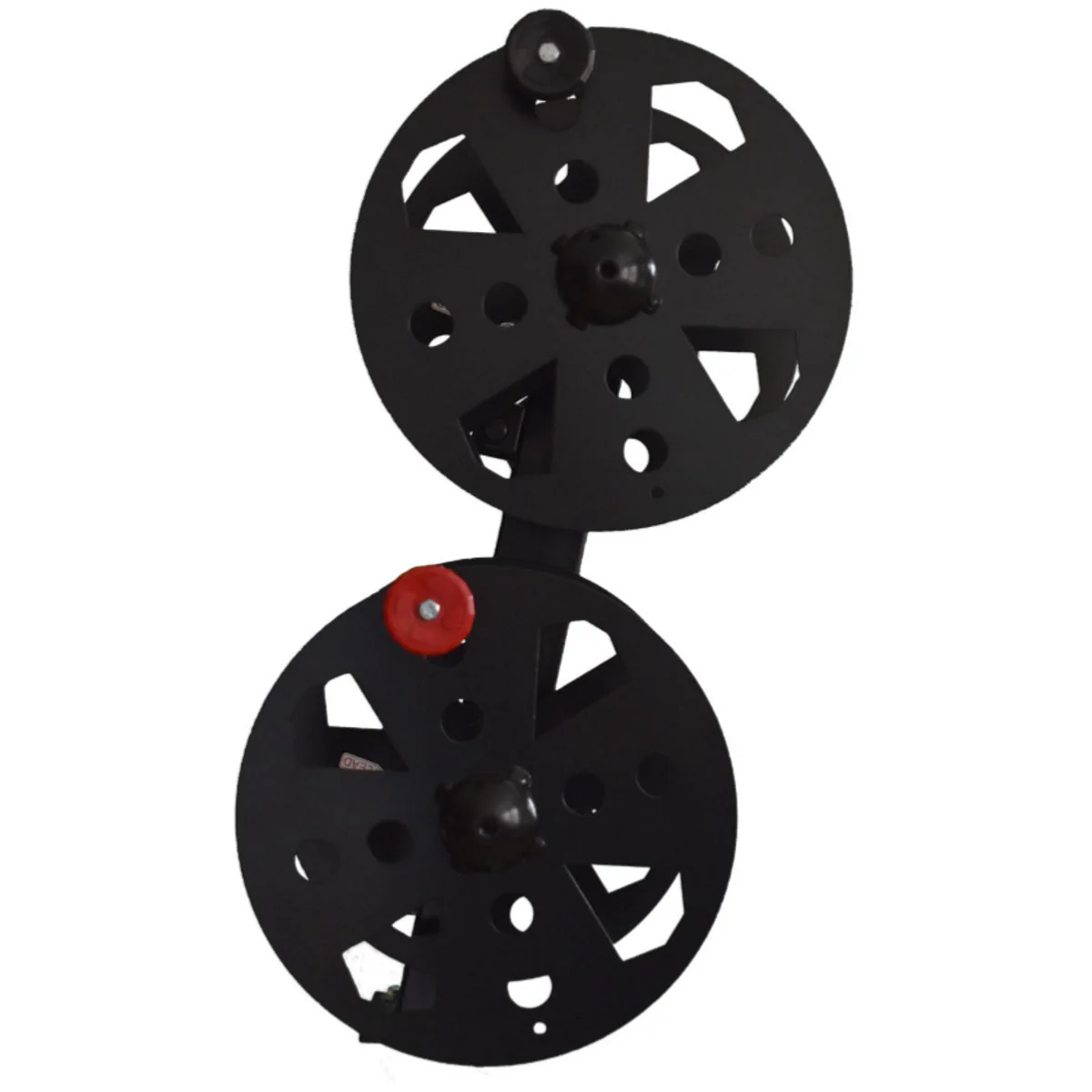

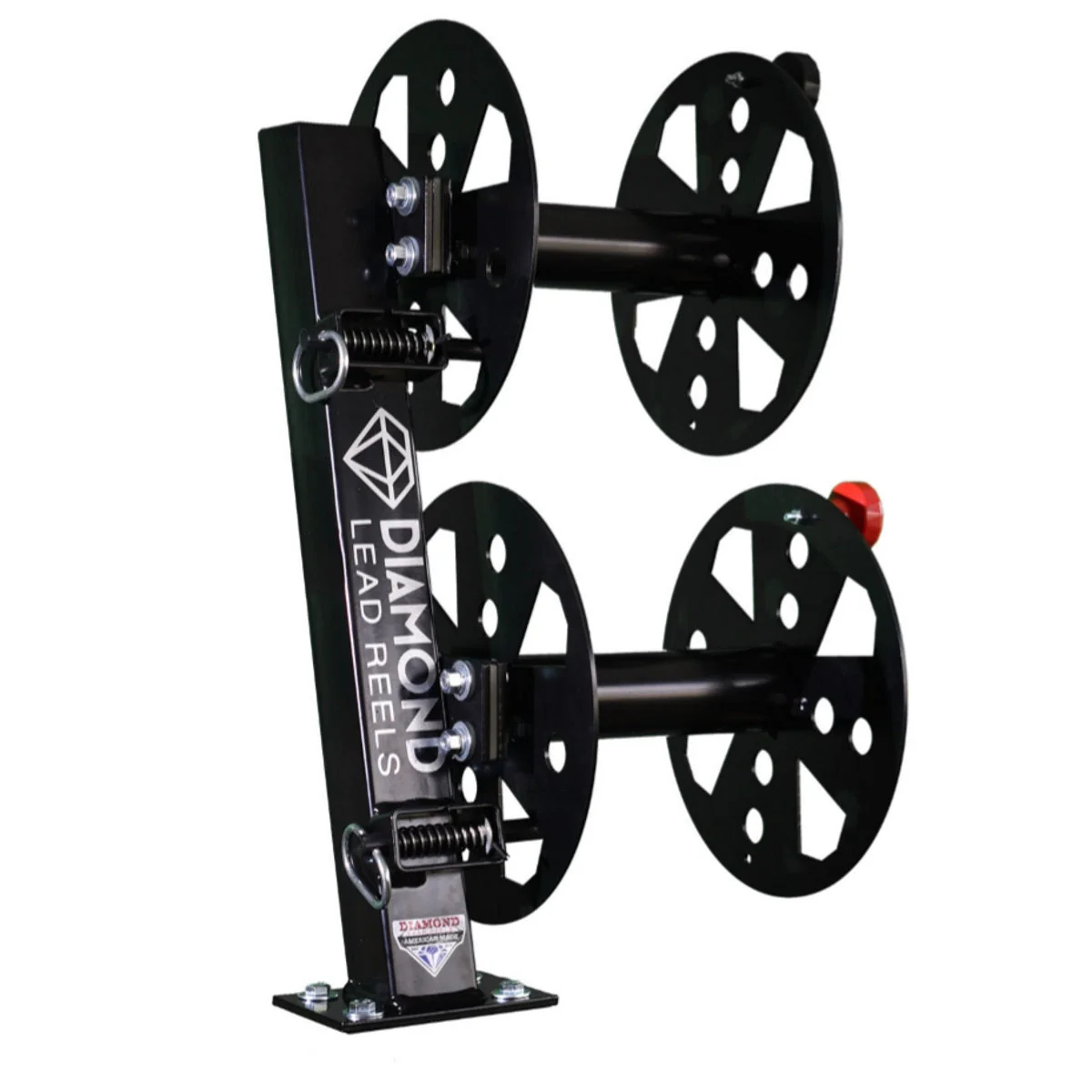

Diamond Lead Reels HD Fixed Base Reel (FBDXXBLK)

The Diamond Lead Reels are built to last a lifetime with heavy-duty construction and ZINC coated steel. These reels come with a fixed base that stays connected to the welder, giving you a "live reel setup". These reels are rated up to 600 amps and come with an adjustable friction brake to help the user set the desired tension. Choose your desired reel diameter - 10 inch or 12 inch. Made in the USA

Features
• Stays connected to the welder at all times
• Comes standard with 600 Amp capacity
• 1/2" Terminal connections
• Vented circle design allows free air-flow to aid cooling
• Heavy-duty adjustable manual friction brake - prevents free spooling during roll-out
• Locking pull pins secure cables while not in use
• Reels are rebuildable with full line of replacement parts

Construction
• Heavy-duty all steel construction
• All hardware is Zinc coated
• Dual ball bearing spools
• Powdercoated finish

Cable Capacity
• 10" Reel: 150' of 1/0 Cable or 125' of 2/0 Cable | Dimensions: 16.5" W x 25.5" H x 12" D (18.5" Width with Knobs)
• 12" Reel: 200' of 1/0 Cable or 175' of 2/0 Cable | Dimensions: 16.5" W x 25.5" H x 14" D (18.5" Width with Knobs)

Warranty
• Lifetime warranty on steel construction and workmanship
• 1 Year warranty on spools, bearings, and pins
