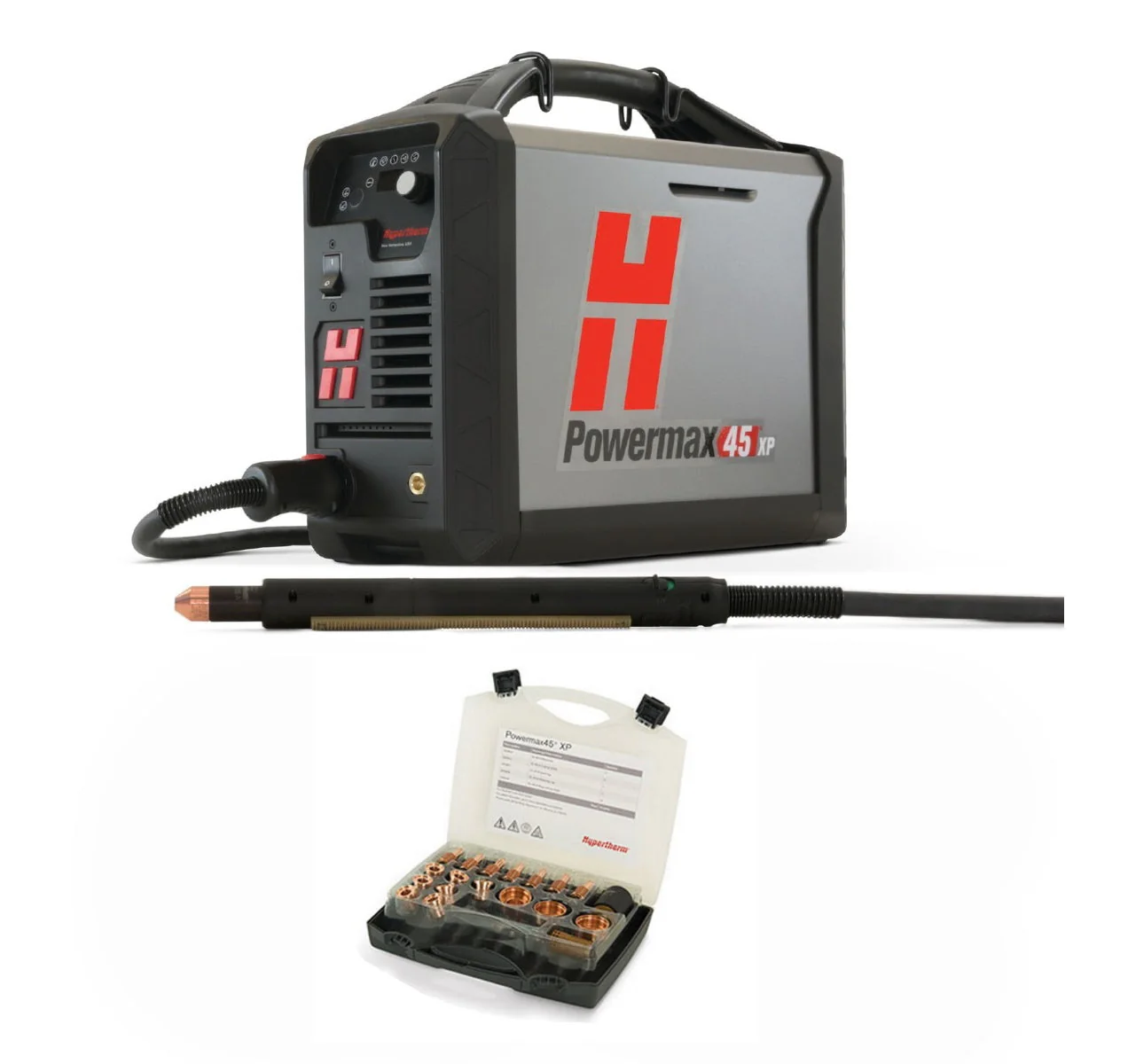

Hypertherm Powermax45 XP Plasma w/CPC 35ft Mechanized Torch Pkg (088117)

Hypertherm's best selling system is getting an overhaul. The new Powermax45 XP system is designed to give the user more precision, performance, and productivity. The Powermax45 XP is the most versatile and portable 5/8" (16 mm) machine on the market, with a broad set of application capabilities that make it a truly multi-purpose tool. This new model comes with the Mechanized Duramax Lock Torch. The Duramax Lock torches utilize the same consumable platform as the Duramax torch series for the Powermax65/85/105 systems. The Powermax45 XP cuts or gouges faster, easier and better than any other product in its class. Hypertherm's Smart Sense technology ensures that air pressure is always set correctly.

Quick Specs
• Cutting Capacity: 5/8" recommended | 1-1/8" severance
• Weight: 46 lbs (with torch)
• Dimensions: 17.4"D x 6.8"W x 14.1"H
• Input Voltages: 200-240 V, 1-PH, 50/60 Hz
• Input Current: 200/240V - 39/32A
• Output Current: 10-45A
• Duty Cycle: 50% @ 45A, 100% @ 32A
• Recommended Air Flow: Cutting - 90 psi (5.9 bar) | Gouging - 60 psi (4.1 bar)
• Input Power Cable Length: 10'
• Engine Drive Requirement: 10 kW for full 45A Output
• 3-year Warranty on Power Supply, 1-year Warranty on Torch

Includes

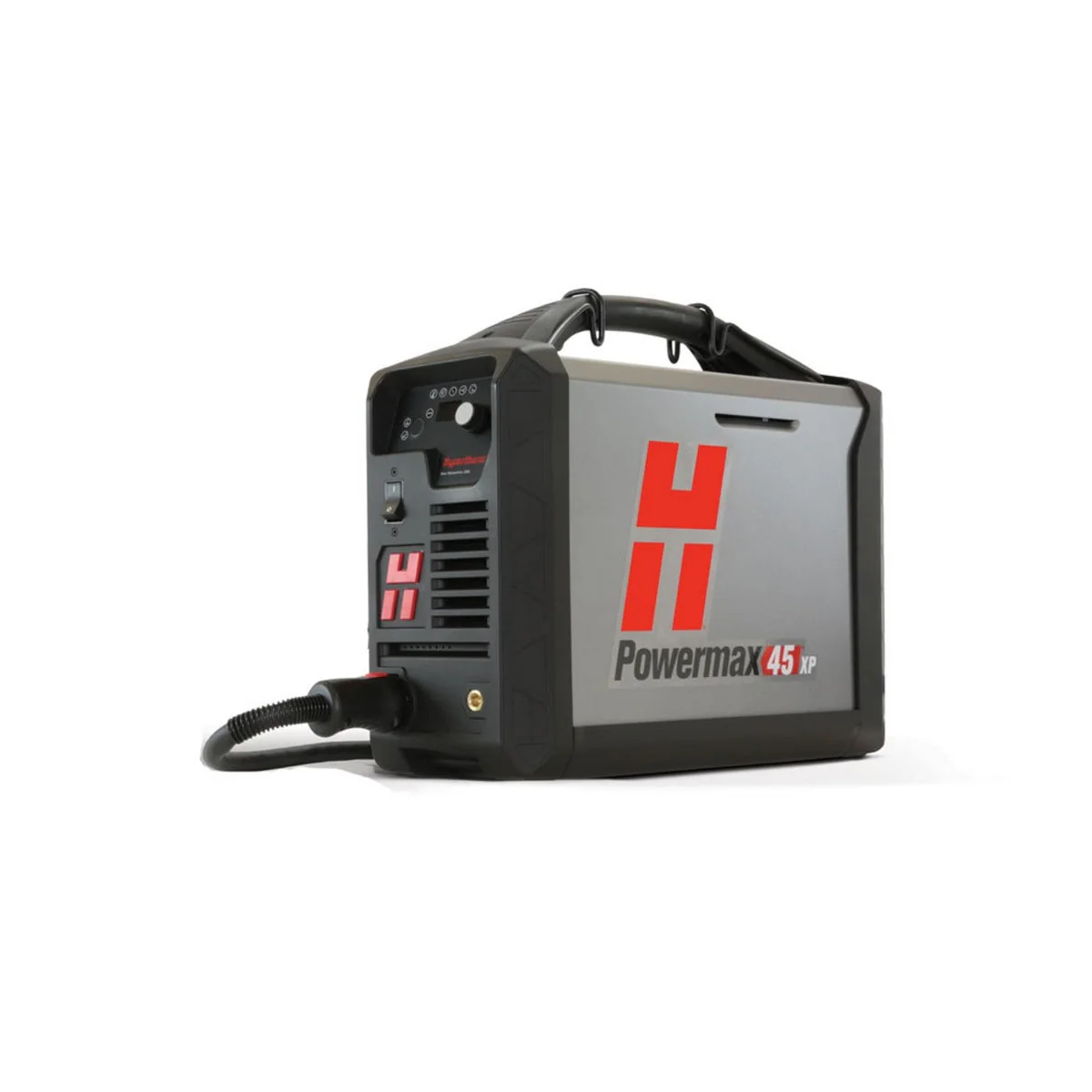

• Power Supply with CPC
• Mechanized Duramax Lock with 35' lead & 25' work clamp
• Remote On/Off Pendant

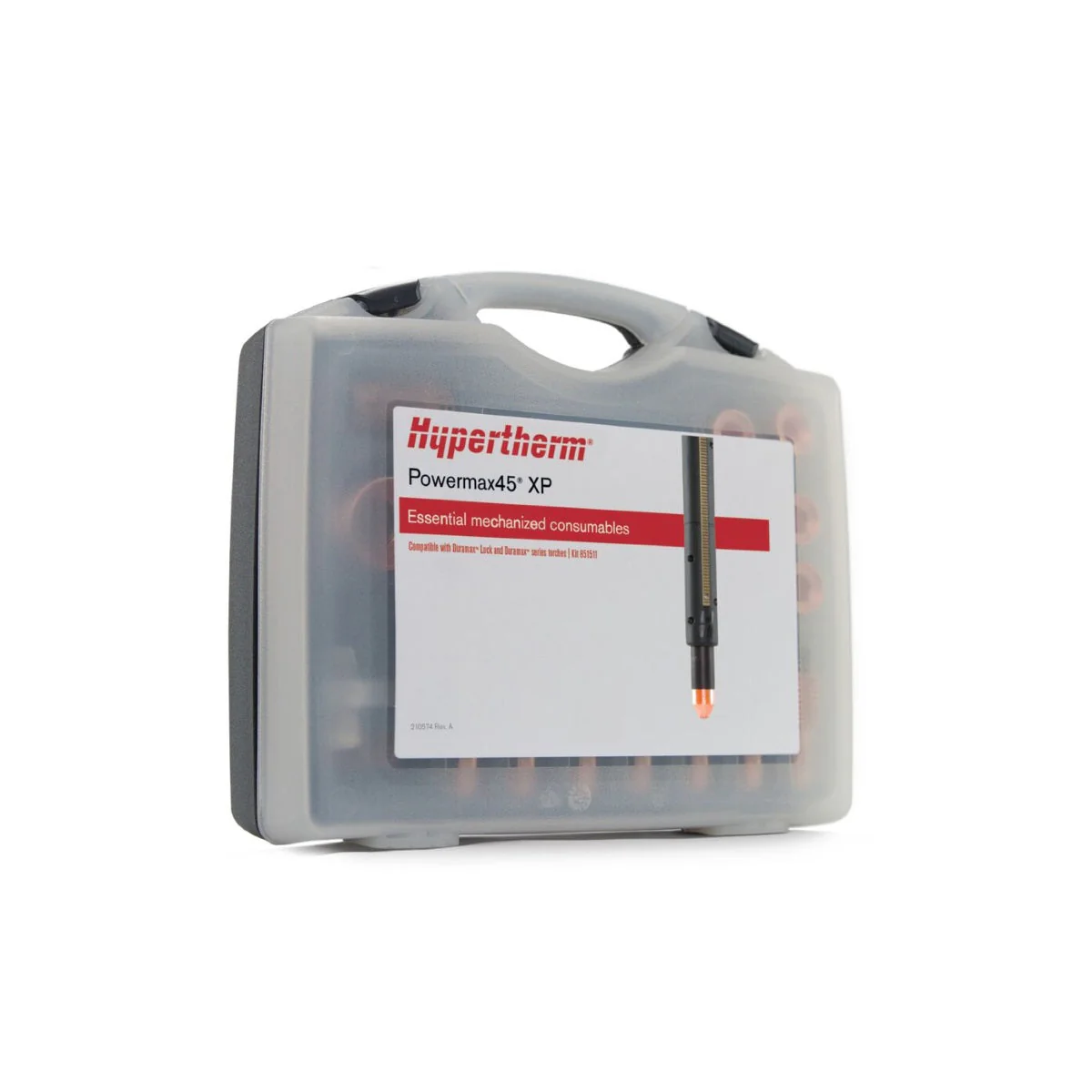

• Mechanized Consumables Kit (851511, No Ohmic Clip Included)
• 2 Electrodes, 2 45A Nozzles, 45A Shield, Gouging Shield, Gouging Nozzle, Retaining Cap, Swirl Ring
• Operator & Safety Manuals
