$1,501.80
Original: $5,006.00
-70%Miller ArcReach Suitcase 12 w/S-Gun (951730)—
$5,006.00
$1,501.80The Story
The Miller ArcReach Suitcase 12 feeder allows the operator to adjust the output voltage at the feeder, saving a trip back to the power supply - no extra control cable to purchase. ArcReach equipped power sources and wire feeders work with non-ArcReach equipment, however the complete benefits are only realized with the ArcReach system.
Suitcase Features

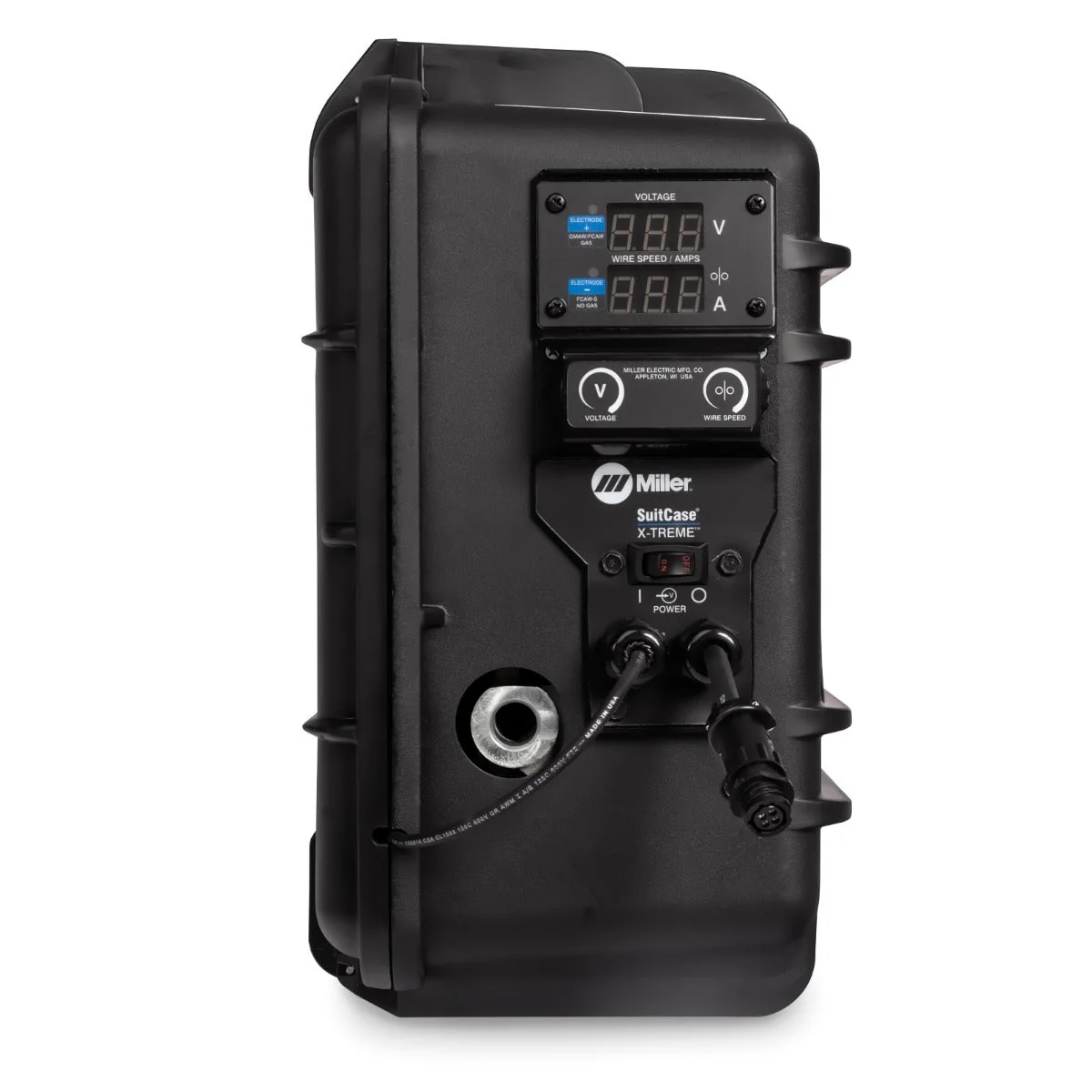

• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case
S-Gun Features
• 45° Locking, Rotatable neck
• Length: 15 ft
• Amperage Capacity: 250A
• High-Impact Glass-Reinforced Ergonomic Handle
• Quik Tip Series Consumables (e.g. T1045)
Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 12" or 45lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 35lbs
Includes
• 12 ArcReach feeder (12-Inch Spool Capacity)
• 15' Bernard 250A S-Gun
• Contact tips: (1) .045 | (1) .052
• .045-1/16 VK drive roll kit (no guides)
Suitcase Features
• Electronic wire feed speed with control tachometer
• Digital meters with sunvision technology
• Front panel has trigger hold, wire jog, and gas purge
• Ability to change wire with feeder in upright position
• Dual schedule capable (dual schedule switch sold separately)
• Gun locking tab prevents gun from being pulled out prematurely
• Recessed gas inlet on rear of case
S-Gun Features
• 45° Locking, Rotatable neck
• Length: 15 ft
• Amperage Capacity: 250A
• High-Impact Glass-Reinforced Ergonomic Handle
• Quik Tip Series Consumables (e.g. T1045)
Quick Specs
• Input Power: 14-48 VDC operating range
• Wire Feed Speed: 50-780 ipm
• Duty Cycle: 60% @ 425A
• Wire Diameter Capacity: .023 - .052 Solid Wire | .030 - 5/64 Flux Cored
• Max Wire Diameter: 12" or 45lb Spool
• Dims: 15.5" H x 9" W x 21" D
• Weight: 35lbs
Includes
• 12 ArcReach feeder (12-Inch Spool Capacity)
• 15' Bernard 250A S-Gun
• Contact tips: (1) .045 | (1) .052
• .045-1/16 VK drive roll kit (no guides)
