Miller Filtair SWX Add-On Telescoping Fume Extraction Arm (951621)—
$4,895.00
The Story

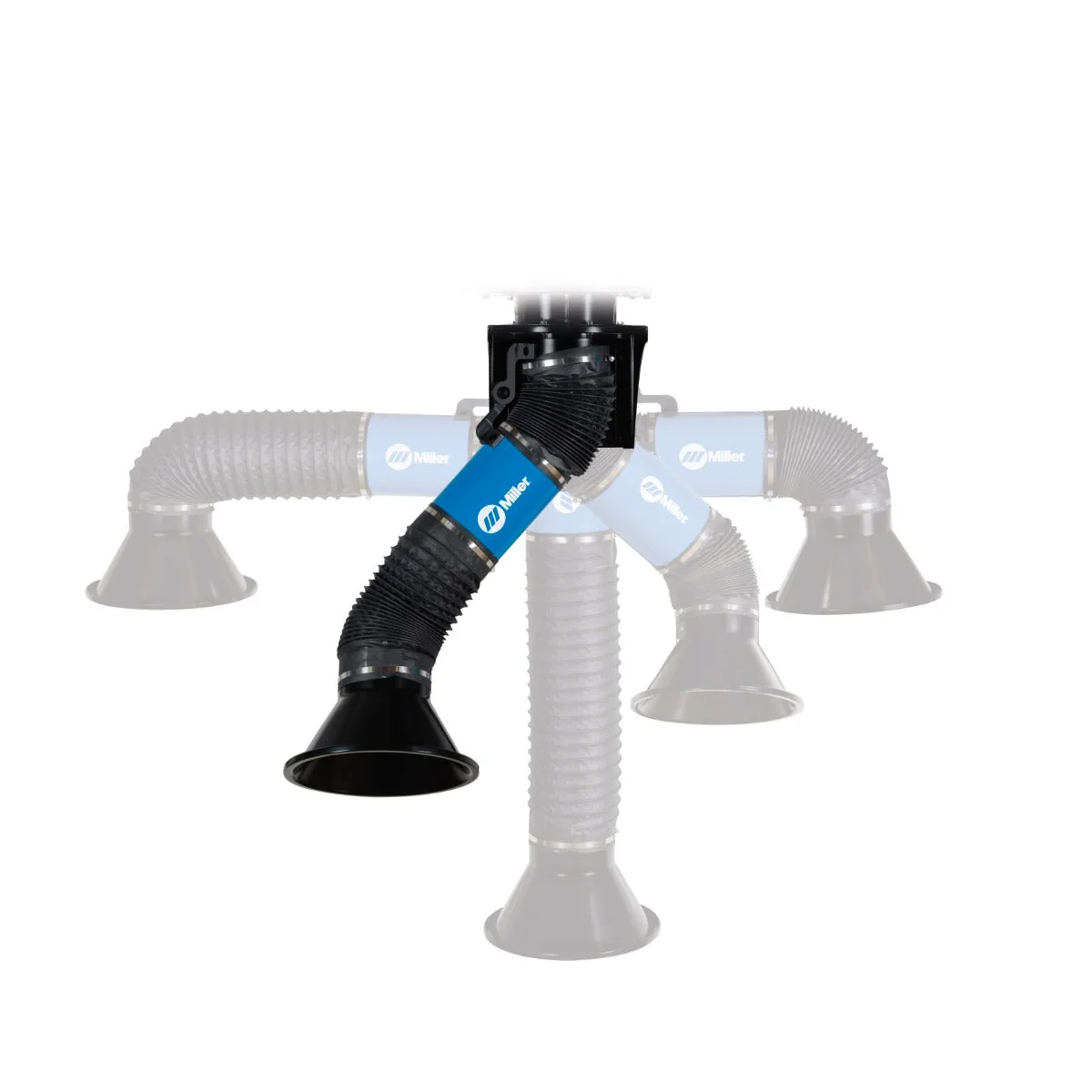

The Filtair SWX add-on extraction arm features a telescoping motion where the arm extends from 3 to 4.5 feet. The 951621 arm includes a blower, mounting bracket, duct and dampers, and an on/off control box. This item does not include the fume extractor cabinet, simply an add-on arm for a dual-arm setup.
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter

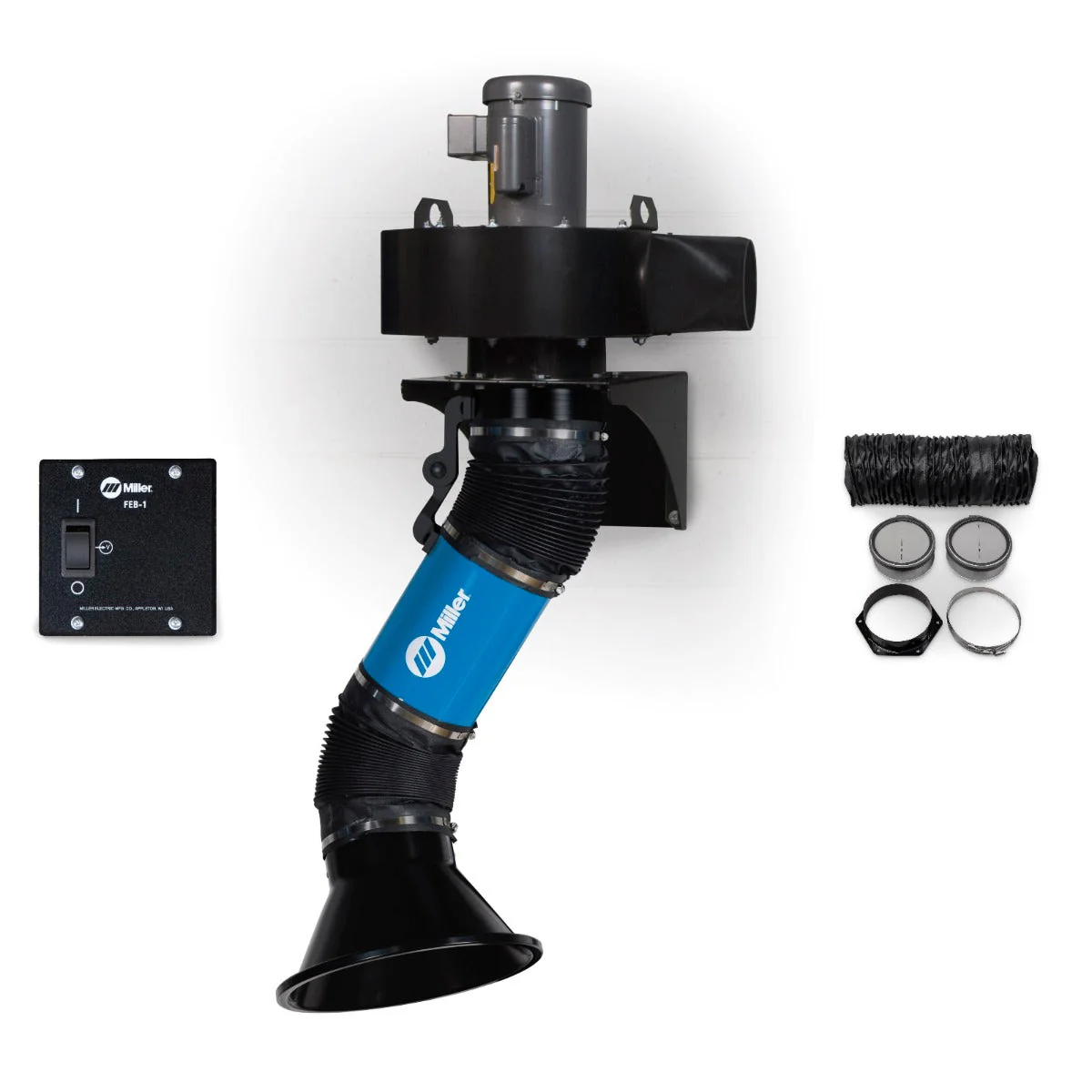

Comes With:
• 3-4.5 foot extraction arm (8-inch diameter)
• Mounting bracket for blower/arm
• 115V Blower
• 115V On/Off control box
• Duct and Backdraft dampers
• 115V Wiring Not Included
Miller's high-performance blower fan generates a class leading 1,200 CFM and creates an accu-rated minimum of 875 CFM extraction at the hood to better capture weld fumes and provide a cleaner environment.
Quick Specs:
• Air Flow: 875 CFM
• Sound Level: Aprox. 75 dBA at 5 feet
• Motor Specs: 1HP, 3450 RPM
• Input Power: 115V, 1-Phase, 60 Hz at approximately 11.9A
• Extractor Arm Dims: 8-inch diameter
Comes With:
• 3-4.5 foot extraction arm (8-inch diameter)
• Mounting bracket for blower/arm
• 115V Blower
• 115V On/Off control box
• Duct and Backdraft dampers
• 115V Wiring Not Included
